Hohner MIDI Piano Accordion MIDI Controller
By Michael Eskin
Open iTunes to buy and download apps.
The Hohner MIDI Piano Accordion is a piano accordion-style CoreMIDI control surface for the iPad.
The app doesn't produce any sound on it own. It is a MIDI control surface designed for playing hardware and software VST-style MIDI synthesizers via a CoreMIDI compatible interface connected to the dock connector or virtual MIDI instruments like Roland Sound Canvas for iOS, IK Multimedia SampleTank®, or Sonosaurus ThumbJam running on your iPad.
The app has a two-octave 24-key treble keyboard and 36 bass/chord buttons.

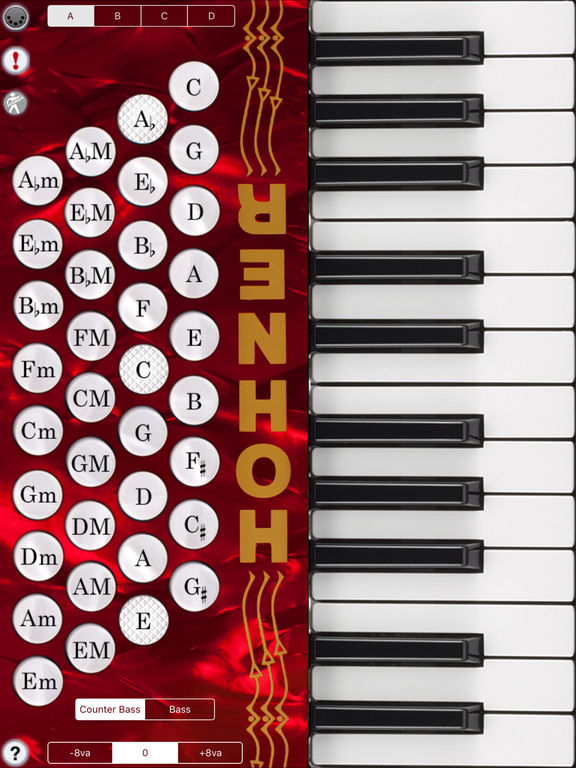

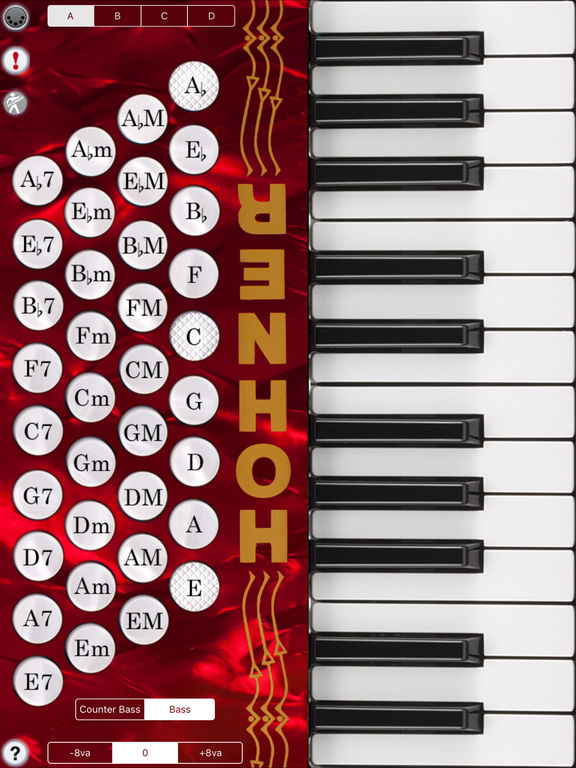

Choose between Bass/Major/Minor/7 or Counter Bass/Major/Minor configuration for the left side of the instrument.
Multiple buttons may be pressed at the same time.
You may slide your fingers between the buttons.

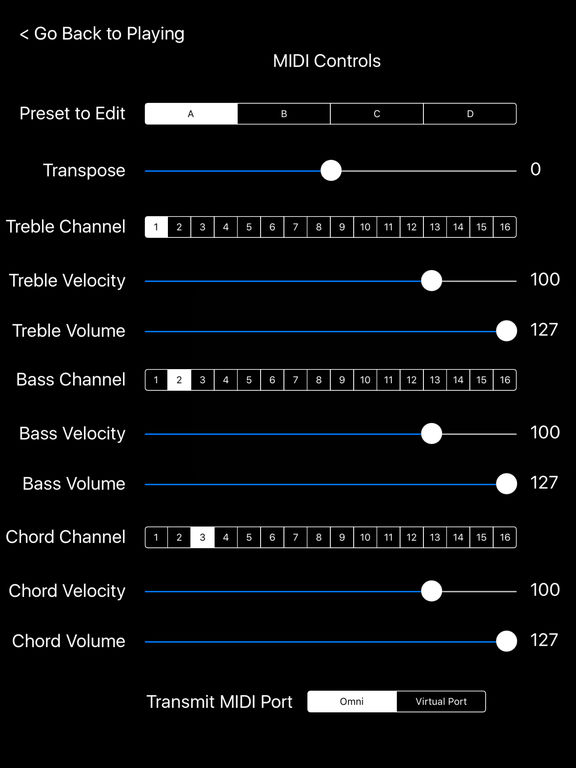

Touch the MIDI connector button to show the MIDI parameter controls.
Using the controls, you can set the MIDI channel (1-16), MIDI velocity, and MIDI volume independently for the treble, bass, and chords. You can also set the overall MIDI transposition for all three sections (+/- 12 semitones).
On the MIDI control screen you may setup four presets. Once setup, the presets may be selected from the main play screen. These can be used to quickly switch between instrument sounds while playing without having to bring up the MIDI settings page. All presets are saved when the app is closed.
Use the "Transmit MIDI Port" switch to choose between "Omni" sending MIDI data to all CoreMIDI apps (matches previous versions of the app) or "Virtual Port" sending to a named CoreMIDI virtual output port. When the "Virtual Port option is selected, the app will show up as an input option in apps that support virtual ports like Sonosaurus ThumbJam and MidiBridge. "Omni" mode is selected by default.
All MIDI settings are saved when the app quits and restored the next time it is run.
Touch the Octave shift select at the bottom of the play scren to shift the treble side up or down one octave (after application of the transpose). The octave shift is saved with the current preset.
Touch the '?' icon to show the base layout note names for each button (without transposition).
Touch the '!' button to send an "All Notes Off" message to silence any "stuck" notes should they ever occur.
Touch the Hohner logo for the help screen with a link to the Hohner accordion website or touch the Accordion Life logo to start learning with online accordion lessons.
The app accurately maps the chord inversion on a real piano accordion to their equivalent MIDI note numbers.
All settings are saved when the app exits.
Here's the settings changes required for two popular synth apps:
IK Multimedia SampleTank:
- In Settings (touch the gear icon), enable "Background Audio"
- In "Prefs", under "MIDI Control", in "MIDI General Options" enable "Use CoreMIDI" and "Active in Background"
Other CoreMIDI compatible synth apps will have similar settings.
Please visit the app support website to see some live demo videos and for the settings you will need to enable in the synth app you are using to have it work with the control surface.
You must disable "Multitasking Gestures" in your iPad General Settings to use this app to its fullest capability if you want to put down more than three fingers at a time.
What's New in Version 2.2.1
Added the ability to shift the treble side +/- one octave.
Added the ability to edit and store four MIDI presets (A, B, C, D) that can be quickly switched on the main play surface.
Each preset includes the MIDI channel and volume/velocity levels for the treble, bass, and chords as well as the overall transpose and octave shift for the treble side.
